Description
Products Appearance

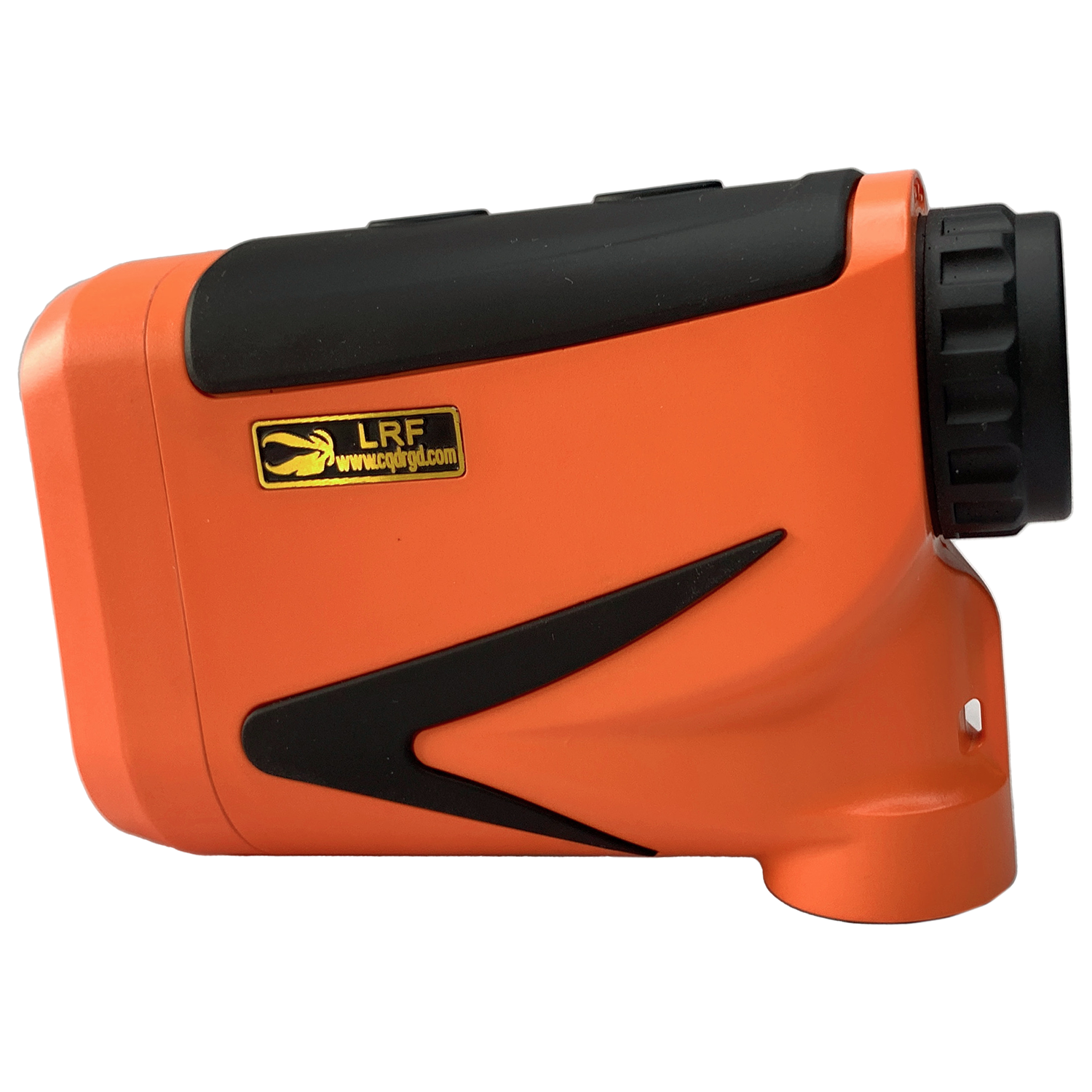

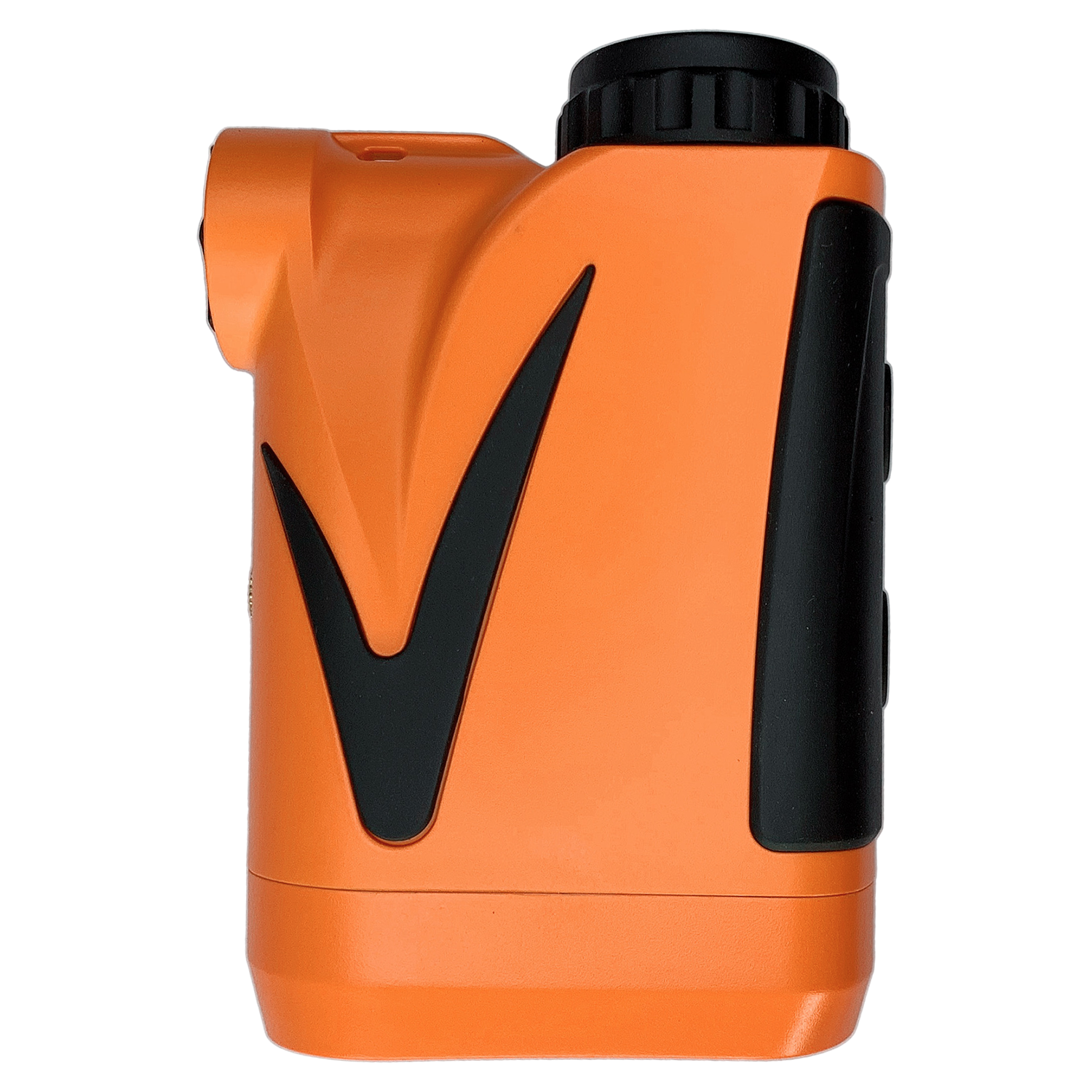

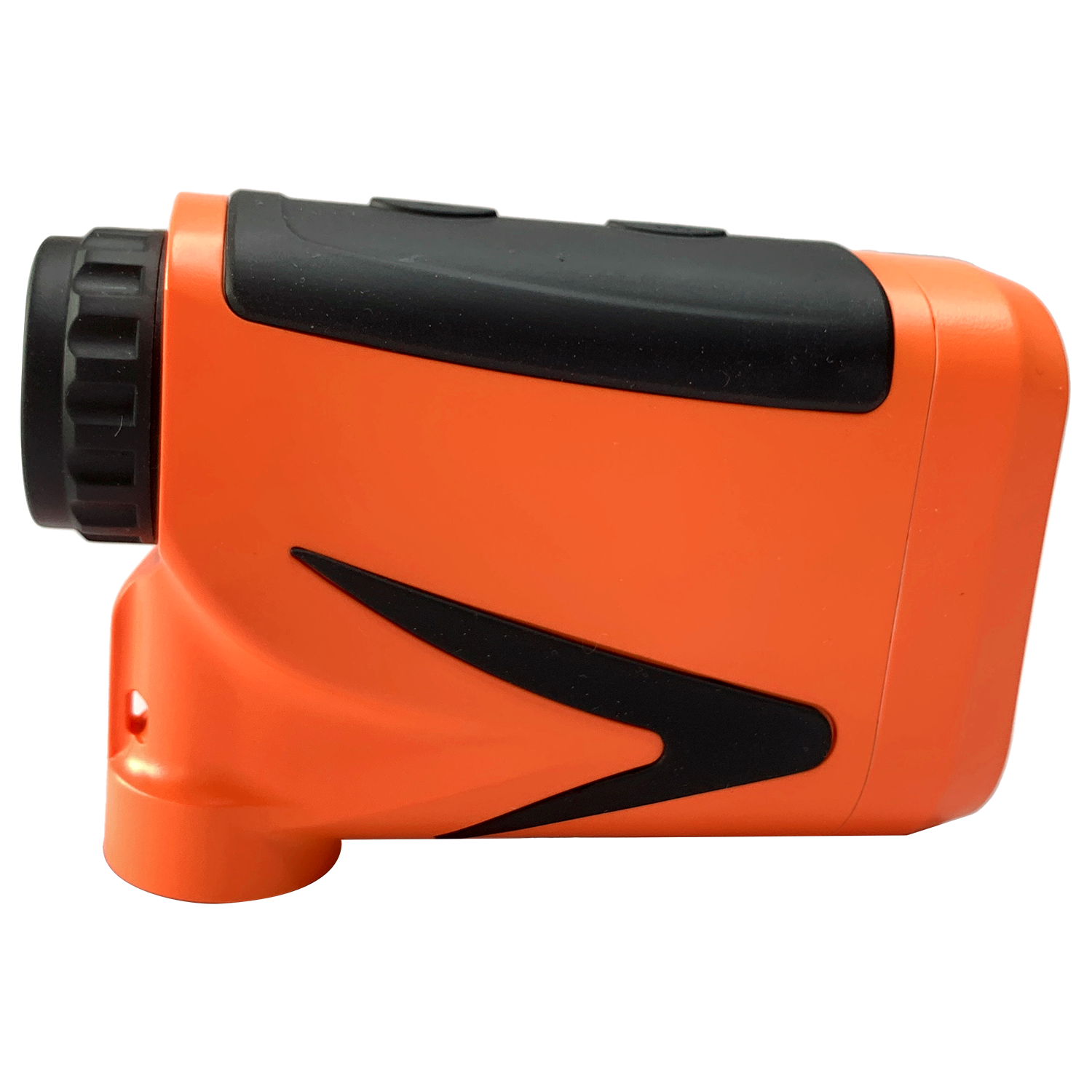

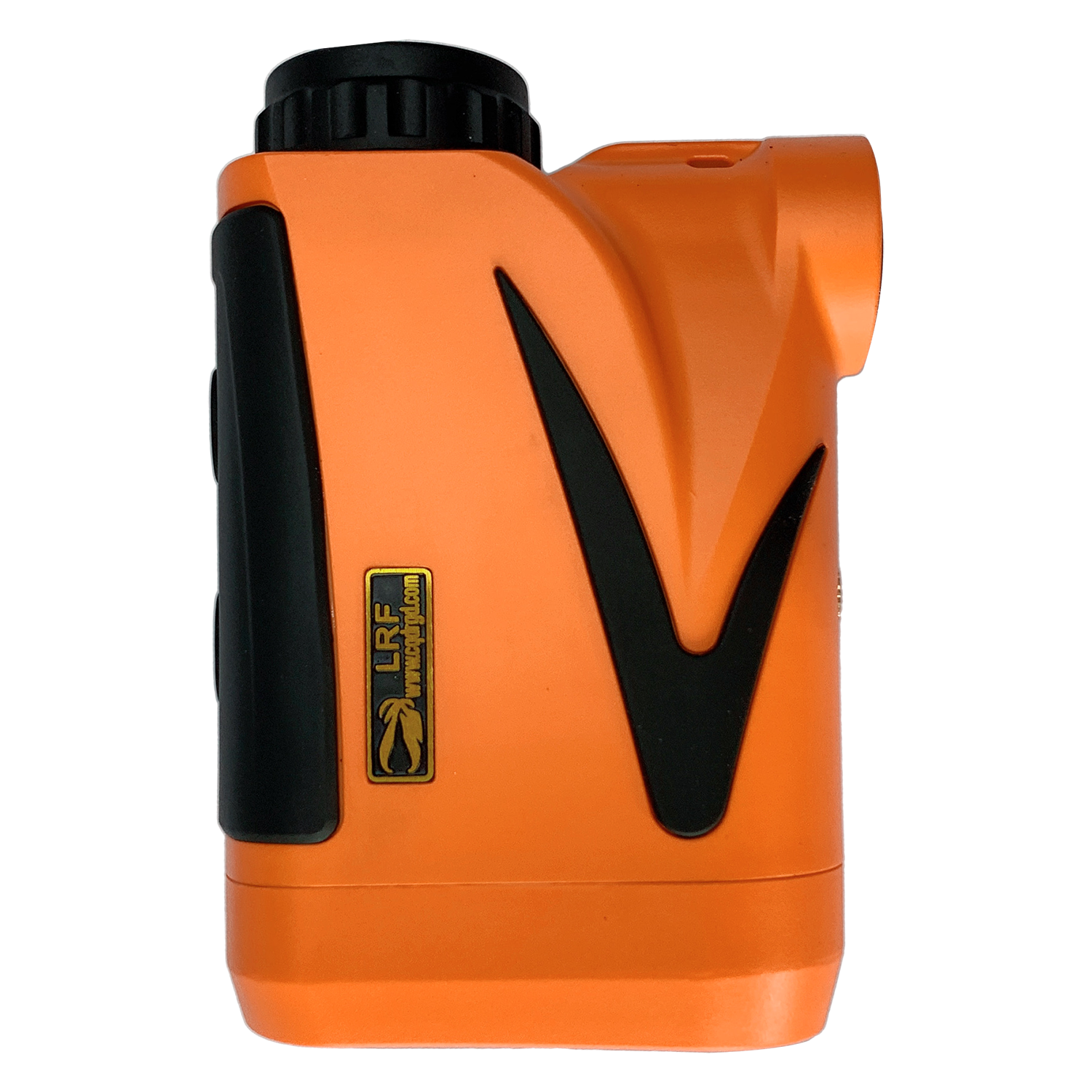

| Front | Back |
 |
 |

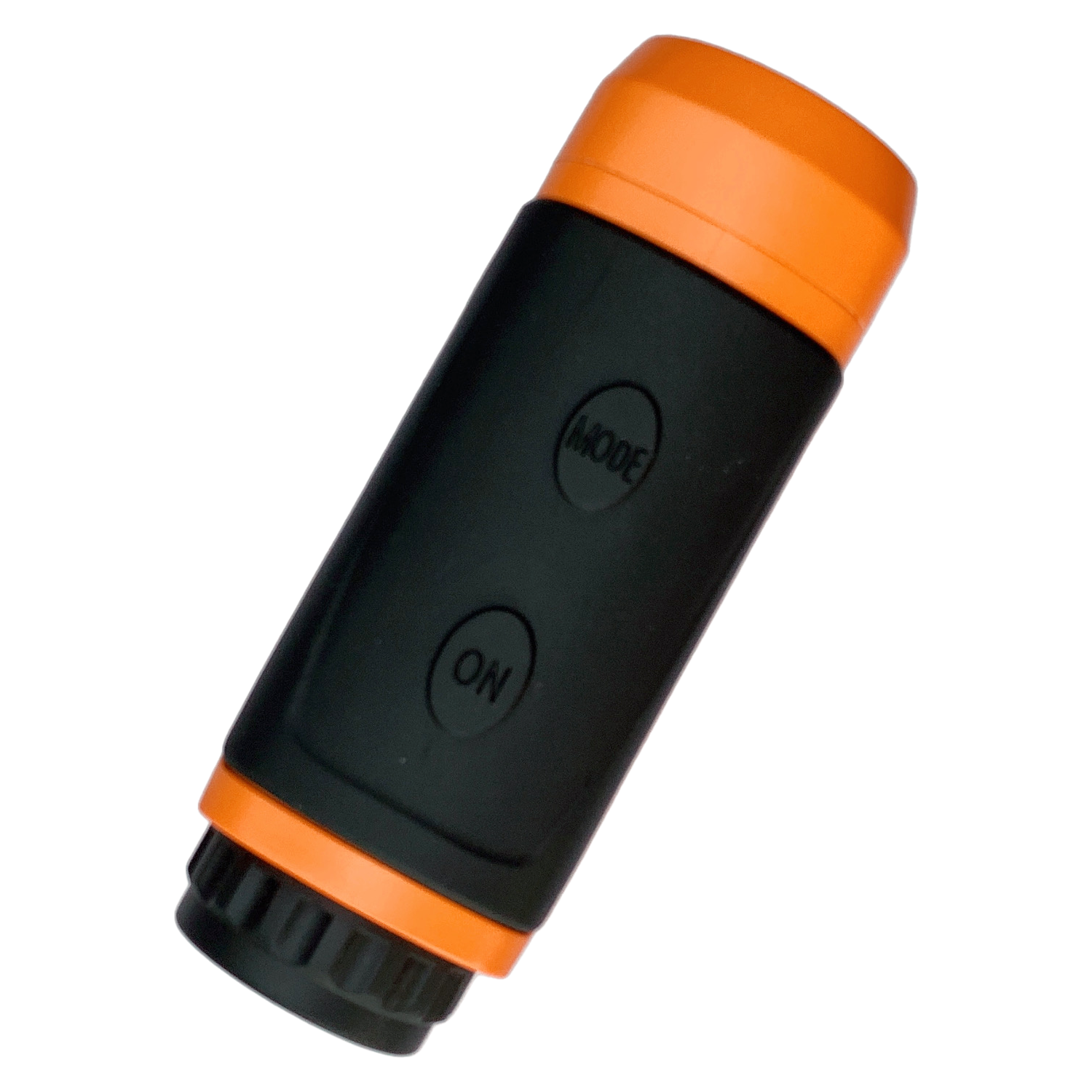

| Objective Lens | Eyepiece |
 |
 |
Technical Parameters
| The Main Technical Index: | Details: |
| Wavelength: | 905nm |
| Max Ranging Distance: | 5 – 600m, 800m, 1000m(options) |
| Ranging Method | Semiconductor laser ranging (no harm to the human eye) |
| Ranging Error | ± 0.3m ± 0.1 %,resolution 0.1m |
| Ranging Display Mode | LCD display in the field of view/Eyepiece |
| Effective Objective Lens Diameter | 20mm |
| Magnification | 5.8 (6.8) x |
| Field of View | 5.6 (4.95) x |
| Focus Way | Eyepiece focus in manually |
| Measuring Height and Angle | ± 90 ° |
| Objective Diameter | 25mm |
| Outlet Diameter | 3.8mm (4.1) |
| Exit Distance | 12mm |
| Focus Mode | Eyepiece focusing |
| Ranging of Vision | 122m/1000m |
| Lens Coating | Multi-layer coating |
| Ranging Mode | RAIN; RELF; >150; no display is standard mode. |
| Min Ranging Distance | 1m |
| Distance Resolution | 1m |
| Power supply | 3V |
| Working Temperature: | -10℃ – +50℃ |
| Dimensions | 38x74x104mm |
| Weight | 130g (not including battery) |
| Function | 7 Mode: Ranging, Speed, Angle, Parabola, Horizontal, Vertical, Continuous Measure. |
Products Features
1.0 Design
1. High Accuracy: ±0.3m accuracy, 0.1m resolution for measurement.
2. High Resolution: 6X Eyepiece with high resolution, easy to adjust the focal length of the eyepiece, get a clearer field of view.
3. Logo Customized is available.
4. ABS Material with Various Painting, eco-friendly, portable, lightweight.
5. Color Customized: Army Green, Pearl White, Matte Black, Red, Blue, Navy, Light Black, Yellow, Brown, Grey, Camouflage, Color as your requirement.
6. Battery: 1pc 3V CR2, convenient to replace and take out, 20s auto shutdown when not in use, Low power consumption, and long service life.
7. MODE: 7 MODE easy to switch, measuring distance, speed, angle, etc.
2.0 Range & Accuracy
 |
1. Range: 2. Applications: Hunting, Golf, Shooting, Speed measure, Terrain, Geophysics, Mining, Oil field, Ports, Railway stations, Airports, City buildings, Roads, Water conservancy project, Transmission line survey, Tracking moving targets, Vehicle automatic control, Automobile safety alarm, Industrial control. 3. Accuracy: Accuracy: ±0.3m, Resolution: ±0.1m Unit: Meter and Yard switches |
3.0 Seven Modes Exchange
|
7 Modes: Single Measurement 1- 4 Mode 1: Measuring Distance & Angle Distance & Horizontal & Vertical |
Continuous Measurement: 1Hz Mode 5 -7 |
